HEAD MOUNTED DISPLAYS

Comparatif de HMDs (avant 1999)

Model	Company	Input	Resolution	FOV	Display	Price
DH-4400VP (Eyepiece)	cy-visor	VGA/SVGA NTSC/PAL S-VHS	800x600*RGB	31° D	color LCD
DH-4500VP (Prism)	cy-visor	VGA/SVGA NTSC/PAL S-VHS	800x600*RGB	32° D	color LCD
DH-4500MPV (Prism)	cy-visor	VGA/SVGA NTSC/PAL S-VHS	800x600*RGB	32° D	color LCD
i-glasses	IO Display Systems	S-Video/RCA (3D) VGA (ProTec)	180 Kp/LCD (3D) 1 Mp/LCD (ProTec)	23 - 30°	color LCD	$699 (PAL 3D) N/A (ProTec)
Opaque optics for 3D model Transmissive optics for ProTec model ProTec model Supports real time stereo imaging
V6	Virtual Research	VGA	640x480	60°	color LCD
V8	Virtual Research	VGA	(640x3)x480	60°	color LCD	80 KF (25% off for 4)
ProView30	Kaiser Electro-Optics Inc	VGA	(640x3)x480	30° D 18° V 24° H	color LCD	$4995
Opaque transmission Head tracker compatible with Polhemus, Ascension sensors
ProView50ST	Kaiser Electro-Optics Inc	VGA	(640x3)x480	30° V 50° H	color LCD	$49995
See through transmission
ProView60	Kaiser Electro-Optics Inc	VGA	(640x3)x480	60° D 36° V 48° H	color LCD	$5995
Opaque transmission Head tracker compatible with Polhemus, Ascension sensors
ProViewXL50	Kaiser Electro-Optics Inc	XGA	1024x768	50° D 30° V 40° H	LCD XGA	$15000
Opaque transmission Head tracker compatible with magnetic & inertial tracker sensors
SimEyeXL100	Kaiser Electro-Optics Inc	XGA	1024x768	64-108° H 46° V	LCD XGA	$74995
See through transmission 10%
Datavisor 80	nVision	SVGA	640x480 1280x1024	80-120° H	color CRT	1MF
See through, motion tracking optional
Datavisor VGA & Hires	nVision	VGA	640x480 (VGA) 640x480->1280x1024 (Hires)	52° D 78° H	color CRT
See through, motion tracking optional
VFX3D	Interactive Imaging Systems	S-Video/VGA	640x480	35°	color LCD	$3499
MRG2.2	Liquid Image	NTSC (PAL optional)	720x240	84° H 65° V	color LCD	$3495
Allows for Analog RGB Signal, RGB can synch on Green or a fourth channel Allows for video pass through so an external monitor can be connected for external viewing
MRG3C	Liquid Image	NTSC (PAL optional)	768x556	84° H 65° V	color LCD	$5500
Allows for Analog RGB Signal, RGB can synch on Green or a fourth channel Allows for video pass through so an external monitor can be connected for external viewing
MRG4	Liquid Image	NTSC	960x234	61° H 46° V	color LCD	$2195
Allows for Analog RGB Signal, RGB can synch on Green or a fourth channel Allows for video pass through so an external monitor can be connected for external viewing
X3	Liquid Image	VGA	(640x3)x480	84° H 65° V	color LCD	$7900
5DT HMD 800-35	5DT	SVGA/PAL	800x600x3	28° H 21° V
Glasstron PLM-S700E	Sony	SVGA, NTSC/PAL	832 x 3 x 624	38° D 22.5° V 30° H	color LCD	$4099
hi-Res800	Cybermind	SVGA/VGA	832x3x624	28° H 24° V	color LCD
Integrated Intertrax tm inertial tracker
Eye-Trek FMD-150W	Olympus	S-Video/NTSC	240 Kpixel	37.5° H 21.7° V	color LCD	~12KF
Eye-Trek FMD-700	Olympus	standard PAL, NTSC, RGB, SVGA, VGA	2x 180 Kpixel	30° H 23° V	écrans ACL TFT	~6000 FHT

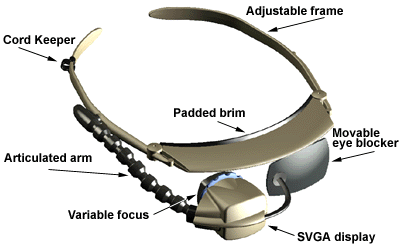

EGlass	Virtual Vision	RGB	800x600	35° D	color LCD
Left Eye/Right Eye Monocular Eyepiece
Integrated Eyeglass Displays	Micro Optical	VGA (DB-15) NTSC (RCA)	320 x 240 (640x480 under development)	11° H Focus range: 1m (an image of a video or computer screen appears at a distance of several feet)	A small 'micro display' is used to generate the image that the user sees. The light rays from the display are relayed to the eye through reflectors within the eyeglass lens
not intended to provide an immersive environment, rather provide a computer screen similar to a computer monitor; however, well-suited to augmented reality The technology can be applied to both lenses in the eyeglasses to form a 3D image. MicroOptical is not currently developing stereo glasses, but may do so in the future
Nomad	Microvision	SVGA, VGA, NTSC, PAL	VGA (640 X 400 pixels) SVGA (800 X 600 pixels)	Equivalent to a 19" Monitor	Retinal Scanning Displays (see-through), Monochrome red (635 nm)
